Rainwater Catchment: Design, Treatment & Storage

Why Rainwater Catchment?

For off-grid properties without a well — or where drilling one costs five figures and offers no guarantee of hitting water — rainwater harvesting is often the most practical, affordable, and resilient water source available. A properly engineered system can supply safe, potable water year-round, even in semi-arid regions receiving as little as 15 inches of annual rainfall.

Rainwater is also remarkably clean at the point of collection compared to surface water. It contains no dissolved minerals, no agricultural runoff, and no industrial contaminants. The challenge is keeping it clean through collection, storage, and delivery — which is exactly what this guide covers in detail.

How Much Water Can You Actually Collect?

The collection formula is simple, but the implications are significant:

Gallons collected = Roof area (sq ft) x Rainfall (inches) x 0.623

The constant 0.623 converts square-foot-inches to gallons (1 square foot of roof receiving 1 inch of rain yields 0.623 gallons). In practice, you lose 10-25% to evaporation, splash, first-flush diversion, and gutter overflow, so apply an efficiency factor of 0.75-0.90 depending on your system design.

Regional Rainfall and Collection Potential

Your location determines everything. Below is a realistic yield table for a 1,500 sq ft metal roof (0.85 efficiency factor) across several US regions:

Region	Example City	Annual Rainfall (in)	Gross Yield (gal)	Net Yield (gal)	Daily Average (gal)
Pacific Northwest	Portland, OR	43	40,183	34,156	93.6
Southeast	Atlanta, GA	50	46,725	39,716	108.8
Northeast	Burlington, VT	36	33,642	28,596	78.3
Midwest	Kansas City, MO	39	36,445	30,978	84.9
Southwest	Tucson, AZ	12	11,214	9,532	26.1
Mountain West	Boise, ID	12	11,214	9,532	26.1
Gulf Coast	Houston, TX	50	46,725	39,716	108.8
Southern California	Los Angeles, CA	15	14,018	11,915	32.6

The critical factor in low-rainfall areas is not total annual precipitation but seasonal distribution. Los Angeles gets most of its 15 inches between November and March, meaning you need enough storage to bridge a 6-7 month dry season. Portland’s rain is more evenly distributed, requiring less tank capacity relative to yield.

Roof Material: Your First and Most Important Filter

The roof is the largest component of your collection system and the one that most affects water quality. Not all roofing materials are suitable for potable water collection.

Material	Suitability	Collection Efficiency	Leaching Concerns	Cost (per sq ft)	Lifespan
Standing-seam metal (galvalume/aluminum)	Excellent	0.90-0.95	Minimal. Zinc trace levels are well below EPA limits.	$8-14	40-60 years
Corrugated metal (galvanized)	Good	0.85-0.90	New galvanized steel may leach zinc at elevated levels for first 1-2 years.	$4-8	25-40 years
Clay/concrete tile	Good	0.75-0.85	Raises pH slightly. Some tiles contain lead-based glazes — verify with manufacturer.	$10-20	50-100 years
Slate	Good	0.80-0.90	Minimal. Natural stone with very low leaching potential.	$15-30	75-150 years
Asphalt shingles	Poor	0.75-0.85	Leaches petroleum hydrocarbons, heavy metals, and algaecides (zinc or copper granules).	$3-6	15-30 years
Treated wood shakes	Not recommended	0.70-0.80	Leaches preservative chemicals (copper, chromium, arsenic in older treatments).	$6-12	20-30 years
Rubber/EPDM membrane	Conditional	0.85-0.90	Some products leach plasticizers. Use only NSF/ANSI 61 certified membrane.	$5-10	20-30 years

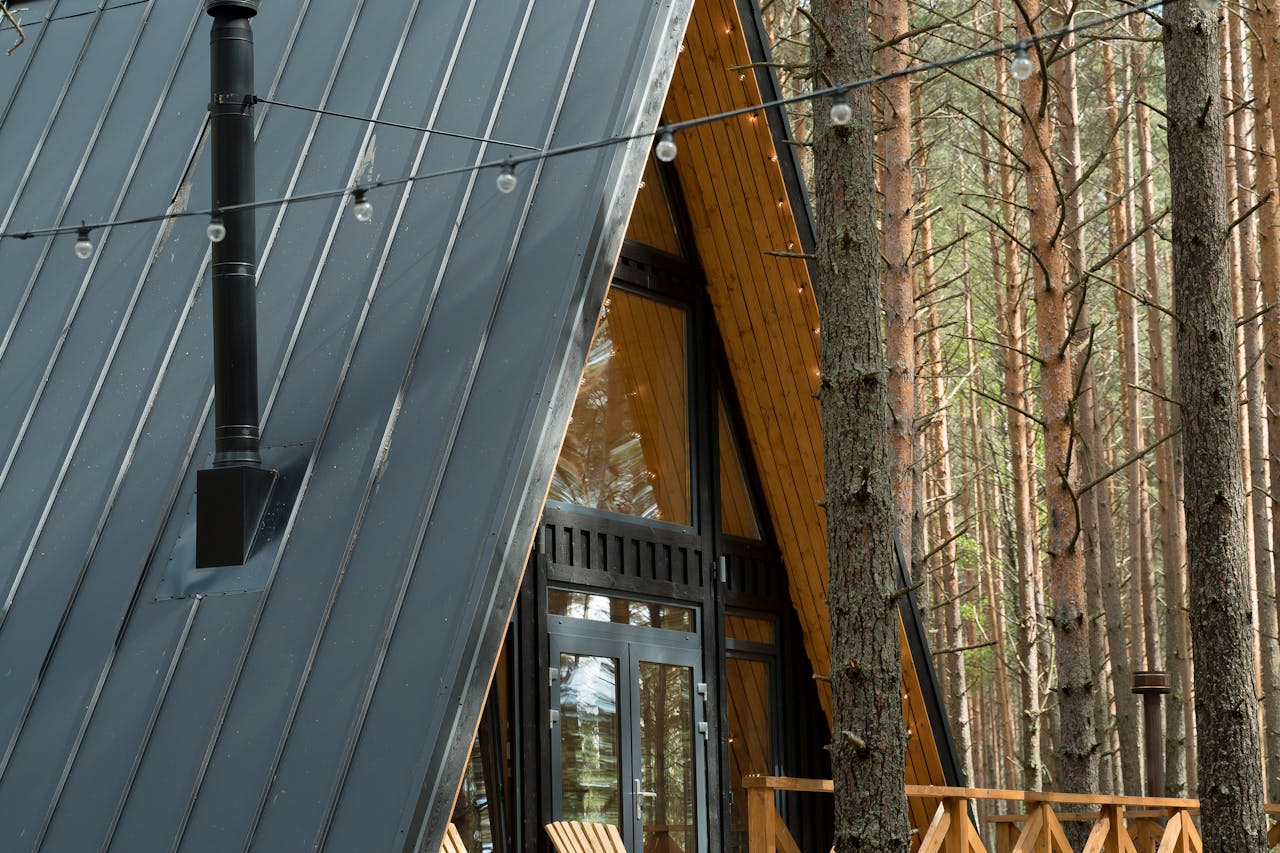

If you are building new, standing-seam metal roofing is the clear choice for a rainwater-dependent household. It sheds water faster, accumulates less debris, and has the highest collection efficiency of any common roofing material.

Gutter Design and Sizing

Undersized or poorly installed gutters are the most common cause of lost collection potential. Water overshoots the gutter during heavy rain, debris blocks flow, and standing water breeds mosquitoes.

Gutter Sizing by Roof Area

Gutter capacity must match the peak rainfall intensity for your region, not just average rainfall. The standard design metric is the maximum 5-minute rainfall intensity in inches per hour.

Roof Area (sq ft)	Low Intensity (<4 in/hr)	Moderate (4-6 in/hr)	High Intensity (>6 in/hr)
Up to 600	5” K-style	5” K-style	6” K-style or half-round
600-1,000	5” K-style	6” K-style	6” half-round
1,000-1,400	6” K-style	6” half-round	7” half-round or commercial box
1,400-2,000	6” half-round	7” half-round	Dual 6” runs or commercial

Installation Specifications

• Slope: 1/16 inch per foot of run toward the downspout. For a 30-foot gutter run, the far end sits 1-7/8 inches higher than the downspout end.
• Downspout sizing: Use 3x4 inch rectangular or 4-inch round downspouts. One downspout per 35 feet of gutter run maximum.
• Hangers: Space gutter hangers every 24 inches (not the 36 inches common in standard construction). Snow load areas require 18-inch spacing.
• Leaf guards: Use a micro-mesh gutter guard rated for your local debris type. Avoid foam inserts — they trap debris and restrict flow.
• Material: Aluminum is the standard for rainwater collection. Avoid copper gutters unless you want the antimicrobial properties and can accept trace copper levels in your water.

First-Flush Diverter Engineering

The first-flush diverter is arguably the single most important water quality component in your system. After a dry spell, your roof accumulates bird droppings, pollen, dust, insect debris, and airborne pollutants. The first rain washes this concentrated contamination off the roof. A properly sized diverter captures and discards this water before it enters your storage tank.

Sizing Calculations

The standard recommendation is to divert the first 1 gallon per 100 square feet of roof area, but this is a minimum. In dusty, rural, or arid environments, increase to 2 gallons per 100 square feet.

For a 1,500 sq ft roof:

• Minimum diversion: 15 gallons
• Recommended (dusty/rural): 30 gallons

A 4-inch diameter PVC pipe holds 0.65 gallons per linear foot. Therefore:

Roof Area (sq ft)	Minimum Diversion (gal)	4” PVC Length Needed	Recommended Diversion (gal)	4” PVC Length Needed
500	5	7.7 ft	10	15.4 ft
1,000	10	15.4 ft	20	30.8 ft
1,500	15	23.1 ft	30	46.2 ft
2,000	20	30.8 ft	40	61.5 ft

DIY First-Flush Diverter Build

Materials (for a 1,000 sq ft roof, standard diversion):

• 16 feet of 4-inch Schedule 40 PVC pipe
• One 4-inch PVC tee fitting
• One 4-inch PVC cap (bottom)
• One 4-inch ball valve (slow-drain)
• PVC primer and cement
• One float ball or standpipe (for automatic cutoff)
• Pipe mounting brackets

Assembly:

1. Connect the tee fitting to your downspout transition. The through-port of the tee continues to the tank inlet. The branch port drops down to the diverter column.
2. Glue the 4-inch PVC pipe vertically below the tee branch port. This is the diverter chamber.
3. Glue the cap on the bottom of the diverter column.
4. Install a 1/2-inch ball valve through the bottom cap (drill and tap, or use a bulkhead fitting). Set this to drip slowly — it should drain the full column in 12-24 hours so it resets between rain events.
5. Drop a floating ball (slightly smaller than the pipe ID) into the column. As the column fills, the ball rises and seats against the tee branch port, sealing the diverter and directing subsequent water through the tee to your tank.

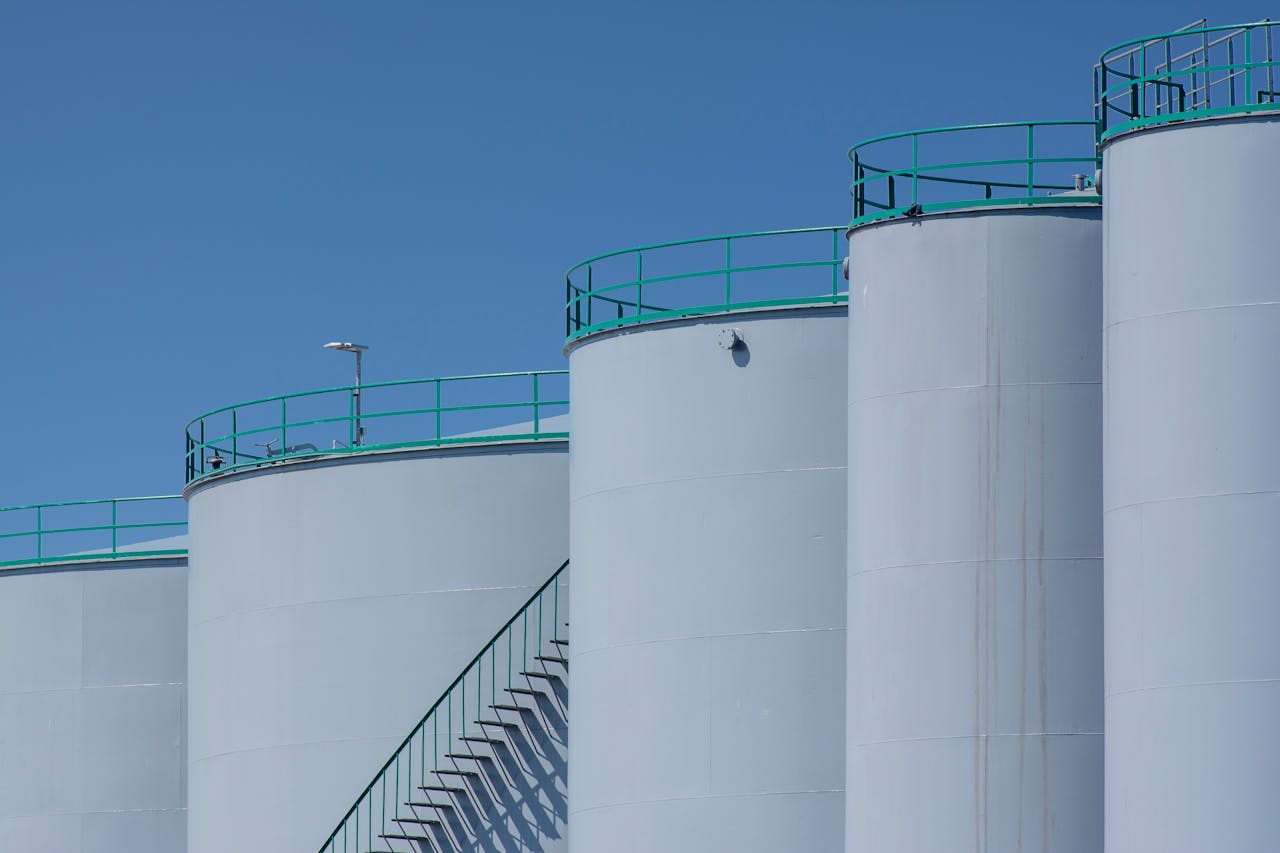

Storage Tank Comparison

Tank selection depends on your budget, available space, climate, and whether you need the water to be potable. Here is a detailed comparison of the four most common options for off-grid systems.

Feature	Polyethylene (Poly)	Ferrocement / Concrete	Welded Steel	IBC Totes (275 gal)
Cost per gallon stored	$0.30-0.80	$0.50-1.50	$0.75-2.00	$0.25-0.50
Typical sizes	250-10,000 gal	500-50,000+ gal	500-30,000 gal	275 gal (fixed)
UV resistance	Good (if UV-stabilized)	Excellent	Excellent (with coating)	Poor (cage blocks some UV)
Algae growth risk	Moderate (translucent models)	Low (opaque, cool)	Low (opaque)	High (translucent plastic)
Cold climate suitability	Moderate (can crack if fully frozen)	Excellent (thermal mass)	Good (but condensation issues)	Poor (thin walls, no insulation)
Installation	Drop in place, no foundation	Requires skilled labor, curing time	Crane or on-site welding	Stack and connect, no skills needed
Potable water safe	Yes (NSF 61 rated models)	Yes (with food-grade liner)	Yes (with food-grade epoxy lining)	Conditional (must be new, food-grade)
Lifespan	15-25 years	30-50+ years	20-40 years	5-10 years
Maintenance	Low	Very low	Moderate (rust prevention)	Low but short-lived

Storage Sizing for Your Dry Season

The formula for minimum tank capacity:

Tank size = Daily use (gal) x Longest dry spell (days) x 1.25 safety factor

Household Size	Conservative Daily Use	Longest Dry Spell	Minimum Tank Size	Recommended Tank
1 person	30 gal	30 days	1,125 gal	1,500 gal
1 person	30 gal	60 days	2,250 gal	2,500 gal
2 people	50 gal	30 days	1,875 gal	2,500 gal
2 people	50 gal	60 days	3,750 gal	5,000 gal
4 people	80 gal	45 days	4,500 gal	5,000 gal
4 people	80 gal	90 days	9,000 gal	10,000 gal

Multi-Stage Filtration Deep Dive

Rainwater collected from a clean metal roof through a first-flush diverter is already far cleaner than most surface water. But “cleaner” does not mean potable. A proper treatment train addresses particles, dissolved chemicals, and biological contaminants in sequence.

Stage 1: Pre-Filtration (100-200 Micron Mesh Screen)

What it does: Catches leaves, insects, shingle grit, and large debris before water enters the tank.

Where it goes: At the tank inlet, after the first-flush diverter.

Cost: $15-50 for a stainless steel mesh basket filter.

Maintenance: Rinse weekly during rainy season. Replace annually if mesh corrodes.

Stage 2: Sediment Filter (5 Micron Cartridge)

What it does: Removes fine silt, clay particles, and pollen that pass through the pre-filter and settle in the tank but get disturbed when the pump runs.

Where it goes: After the pressure pump, before the carbon filter. Install in a standard 10-inch or 20-inch filter housing.

Cost: $8-15 per cartridge. Housing $25-60.

Maintenance: Replace every 3-6 months depending on turbidity. Monitor pressure drop — replace when the differential exceeds 5 PSI.

Stage 3: Activated Carbon Block (1-5 Micron)

What it does: Adsorbs dissolved organic compounds, chlorine (if you occasionally add it), pesticide residues, volatile organic compounds, and improves taste and odor.

Where it goes: After the sediment filter, before UV sterilization. The carbon filter must receive pre-filtered water or it will clog prematurely.

Cost: $15-30 per cartridge.

Maintenance: Replace every 6 months or per manufacturer’s rated gallon capacity (typically 10,000-20,000 gallons). Carbon filters do not announce failure — they simply stop adsorbing. Replace on schedule, not on appearance.

Stage 4: UV Sterilization (40 mJ/cm2 Minimum)

What it does: Destroys the DNA of bacteria, viruses, and protozoa (including Giardia and Cryptosporidium) by exposing water to UV-C light at 254 nm.

Where it goes: After all particulate filtration. UV is ineffective in turbid water because particles shield pathogens from the light. Water must have turbidity below 1 NTU for reliable disinfection.

Cost: $150-500 for the unit. Replacement lamps $50-100 annually.

Maintenance: Replace the UV lamp annually regardless of visual appearance — UV output degrades below effective levels before the lamp visibly dims. Clean the quartz sleeve every 6 months (mineral deposits reduce transmission).

Stage 5 (Optional): Reverse Osmosis

When you need it: If your collection area has industrial fallout, heavy metal contamination (old lead-paint roofs, for example), or if you want the absolute highest purity level. RO removes dissolved salts, heavy metals, fluoride, and nitrates that carbon alone cannot address.

Downsides: RO wastes 2-4 gallons for every gallon produced (the reject water can be directed to irrigation). It also strips beneficial minerals, producing very low-TDS water that some find tastes flat. Flow rates are slow (50-100 GPD for residential units), so you typically fill a pressurized storage tank.

Cost: $200-600 for a residential under-sink unit. Membrane replacement every 2-3 years ($50-100).

Water Testing and Quality Monitoring

Trust but verify. Designing a good system is not enough — you must test your water to confirm it is safe.

Recommended Testing Schedule

Test	Frequency	What You’re Checking	Target Value	Cost
Total coliform / E. coli	Every 6 months	Bacterial contamination	0 CFU/100mL (absent)	$20-40 per test
pH	Every 6 months	Acidity/alkalinity	6.5-8.5	$10-15 (test strips)
Turbidity	Quarterly	Particulate load / filter performance	<1 NTU	$30-50 (meter)
Total dissolved solids (TDS)	Annually	Dissolved mineral/chemical load	<500 mg/L	$15-25 (meter)
Heavy metals panel (lead, copper, zinc)	Annually	Roof/plumbing leaching	Below EPA MCLs	$50-150 (lab test)
VOCs (volatile organic compounds)	Annually (asphalt roofs only)	Petroleum byproduct leaching	Below EPA MCLs	$100-200 (lab test)

Most county health departments offer free or low-cost coliform testing. For comprehensive panels, use a certified lab — search for EPA-certified labs in your state through the EPA’s Safe Drinking Water Information System.

Legal Considerations by State

Rainwater collection is legal in all 50 states as of 2025, but several states impose restrictions on method, volume, or use. Before investing in a system, verify your state and local regulations.

Regulation Level	States	Summary
Unrestricted / Encouraged	Texas, Ohio, Virginia, most Eastern states	No permits required. Some states (Texas, Virginia) offer tax incentives or require new developments to include rainwater infrastructure.
Legal with minor restrictions	Washington, Oregon, California	OR: Rooftop collection only, no permit needed. WA: Legal for any use since 2009. CA: No permit for residential systems up to 5,000 gallons.
Permit or registration required	Colorado, Utah, Nevada, Arizona	CO: Limited to two 110-gallon barrels on residential property (expanded in 2016). UT: Up to 2,500 gallons with registration. AZ: No state restrictions but local codes may apply.
Restricted for potable use	Some local jurisdictions	Certain counties require a licensed engineer to sign off on potable rainwater systems, or mandate connection to a public water supply as primary.

Gravity-Fed vs. Pumped Systems

This is a fundamental design decision that affects cost, complexity, reliability, and energy requirements.

Gravity-Fed Systems

How it works: The storage tank is elevated above the point of use. Water pressure is generated by gravity alone. Every foot of elevation provides 0.433 PSI of pressure.

• To achieve a typical household minimum of 20 PSI, you need the tank bottom at least 46 feet above the fixtures. This is rarely practical for a full-size tank.
• A more realistic gravity-fed setup places a smaller (100-500 gallon) header tank on a tower 10-20 feet high, providing 4-9 PSI — enough for basic fixtures, garden hoses, and drip irrigation but not for standard showers or appliances expecting 40-60 PSI.

Best for: Simple off-grid cabins, irrigation systems, outdoor washing stations, or as emergency backup if power fails.

Pumped Systems

How it works: A pump draws water from the ground-level storage tank and delivers it at standard household pressure (40-60 PSI) through a pressure tank.

• Standard setup: 1/2 HP to 1 HP shallow-well jet pump or submersible pump with a 20-40 gallon pressure tank.
• Power consumption: 500-1,000 watts while running. A typical household system runs the pump for 1-2 hours per day total, consuming 0.5-2 kWh daily.
• Solar compatibility: Well-suited for off-grid solar. A 500W pump drawing from a 24V battery bank through an inverter is a standard configuration.

Winterization for Cold Climates

If you live where temperatures regularly drop below 25 degrees F, your rainwater system needs freeze protection. Burst pipes and cracked tanks will ruin a system fast.

Buried Storage

Bury your primary storage tank below the frost line. In most of the northern US, this means the top of the tank sits 4-6 feet below grade. Concrete and fiberglass tanks handle burial well. Poly tanks must be specifically rated for below-grade installation (look for “below-grade” or “underground” in the product specifications).

Insulated Above-Ground Storage

If burial is not feasible, insulate above-ground tanks with 2-4 inches of closed-cell spray foam or rigid foam board, then protect the insulation with a weather barrier. A tank heater (stock tank de-icer, 1,000-1,500 watts) keeps water above freezing but adds significant energy cost.

Pipe Protection

• Bury all supply and distribution pipes below the frost line.
• Where pipes must run above grade (pump house connections, tank inlet/outlet), use heat tape (self-regulating type, 5-8 watts per linear foot) wrapped with pipe insulation.
• Install drain valves at all low points so you can empty exposed sections before a hard freeze.

Gutter and Downspout Management

In heavy snowfall areas, remove gutter screens before winter to prevent ice dam formation. Some installers disconnect gutters entirely during winter months and rely on stored water until spring melt. If you collect during winter, install heat cable along the gutter bottom to prevent ice blockage.

Maintenance Schedule

Consistent maintenance is the difference between a system that provides safe water for decades and one that becomes a liability. Post this schedule where you will see it.

Task	Frequency	Time Required	Details
Inspect gutters and screens	Monthly	15 min	Clear debris, check slope, verify water flow.
Clean downspout strainer baskets	Monthly (weekly in fall)	5 min per basket	Remove and rinse. Replace if corroded.
Check first-flush diverter drain valve	Monthly	5 min	Confirm it drips steadily and column drains between storms.
Replace sediment pre-filter cartridge	Every 3-6 months	10 min	Monitor pressure gauge. Replace at 5 PSI differential.
Replace carbon filter cartridge	Every 6 months	10 min	Replace on schedule regardless of appearance.
Check UV lamp output	Every 6 months	5 min	Use built-in intensity monitor if available.
Replace UV lamp	Annually	15 min	Replace even if lamp appears functional. UV output degrades.
Clean UV quartz sleeve	Every 6 months	15 min	Soak in vinegar or CLR solution, wipe with lint-free cloth.
Inspect tank interior	Annually	30 min	Look for sediment buildup, algae, biofilm, cracks, or corrosion.
Flush tank sediment	Every 1-2 years	1-2 hours	Open bottom drain valve and flush until water runs clear.
Test water quality (coliform)	Every 6 months	Mail-in lab kit	Send to certified lab. Immediate action if coliform detected.
Test water quality (full panel)	Annually	Mail-in lab kit	Heavy metals, VOCs, pH, TDS, turbidity.
Inspect roof surface	Annually	30 min	Look for damage, moss/lichen growth, loose fasteners.

Complete System Design Example

Below is a fully spec’d system for a 2-person off-grid household in the Southeast US (40-50 inches of annual rainfall, longest dry spell approximately 30 days), targeting potable water self-sufficiency.

System Specifications

Component	Selection	Cost
Roof	1,500 sq ft standing-seam galvalume metal	(Part of building cost)
Gutters	6-inch aluminum K-style, 120 linear feet	$480
Downspouts	3x4 inch rectangular aluminum, qty 4	$120
Gutter guards	Stainless micro-mesh, 120 linear feet	$360
First-flush diverter	DIY 4-inch PVC, 25 ft column with float ball	$85
Pre-filter	Stainless steel mesh basket, 100 micron	$45
Primary storage	Two 2,500-gal poly tanks (UV-stabilized, food-grade)	$2,800
Tank base	Compacted gravel pad with concrete block leveling	$200
Pump	3/4 HP shallow-well jet pump	$350
Pressure tank	20-gallon bladder tank	$180
Sediment filter housing + cartridges (1 year)	20-inch big blue housing, 5-micron cartridges	$95
Carbon block filter housing + cartridges (1 year)	20-inch big blue housing, carbon block cartridges	$110
UV sterilizer	12 GPM, NSF 55 Class A (40 mJ/cm2)	$400
Plumbing (PEX, fittings, valves, misc)	Various	$350
Total		$5,575

Annual Operating Costs

Item	Annual Cost
Sediment filter cartridges (2-4 per year)	$30-60
Carbon filter cartridges (2 per year)	$40-60
UV replacement lamp	$60-90
Water testing (2 coliform + 1 full panel)	$100-150
Electricity (pump, ~1.5 kWh/day)	$65 (solar: $0)
Total annual	$295-425

Compare this to a well: drilling alone averages $5,000-15,000 with no guarantee of adequate yield, plus the pump, pressure tank, and water treatment still apply. A rainwater system is cost-competitive with wells in many regions and does not depend on groundwater availability.

---
